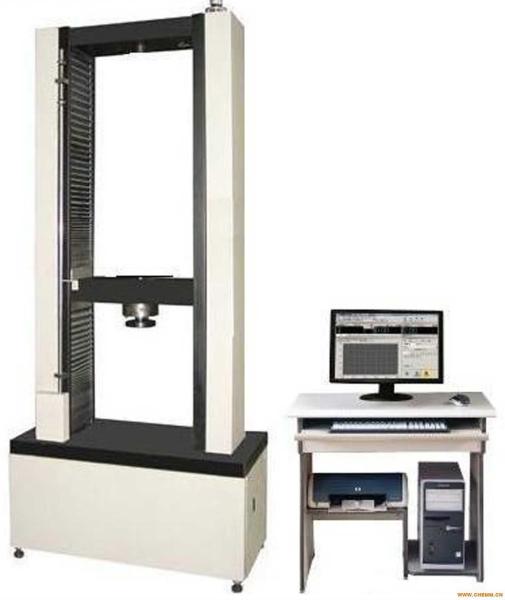

DX8129 Automatic Iron Pellet Crushing Strength Testing Machine
Introduction:
Crushing Strength is the maximum compressive load at which an iron ore pellet is broken completely. Compressive load is applied on the pellet between two parallel platens at a uniform speed of 15 ± 5mm/min over the entire period. The testing machine is a geared machine of 10kN capacity with the capability to apply load at a uniform rate of 15 ± 5mm/minute. The machine is supplied with a 10kN load cell for the measurement of load, a Load indicator with facilities for displaying the load, for holding the displayed value at the peak load value & for automatically switching the machine off at the maximum or breaking load.
Main technical indicators:
| Max. test force | 10KN |
| Measuring range of test force | 0.1-10KN |
| Accuracy of test force | ±0.25% |
| Max loading Frame Strength | 60 kN (6 ton) |
| Speed Range | 01 mm/min - 50 mm/min |
| Power supply | 220V, 50Hz |
- Load indicator with facilities for displaying peak load value
- with cross head speed indicator
- Precision Ball Screw drive system
- Designed for testing CCS strength according to international standards
- Suitable for operation on , 1Phase AC supply. less
Company profile:
DAXIAN's testing equipment are widely used in various field: scientific institutions, colleges, inspection institutions, auto parts, electronics, electricals, LED, photoelectricity, mobile, plasticand rubber, telecommunication, chemical industry, aerospace, building material and product, wire and cable,textile and fabrix, etc. All DAXIAN testing equipment are designed according to international test standards, such as ISO, ASTM, DIN, EN, GB, BS, JIS, UL, TAPPI, AATCC, IEC, VDE, CSA,CEN and so on.
